999ch Amateur Vox Transceiver+program Uhf Dmr Radio Hf 400-480mhz Retevis Walkie Portable 5w Digital Ellyn Iver Rating: 4.3 out of 5
Low-cost rate and also cost-free delivery. Let's get before rates climb.

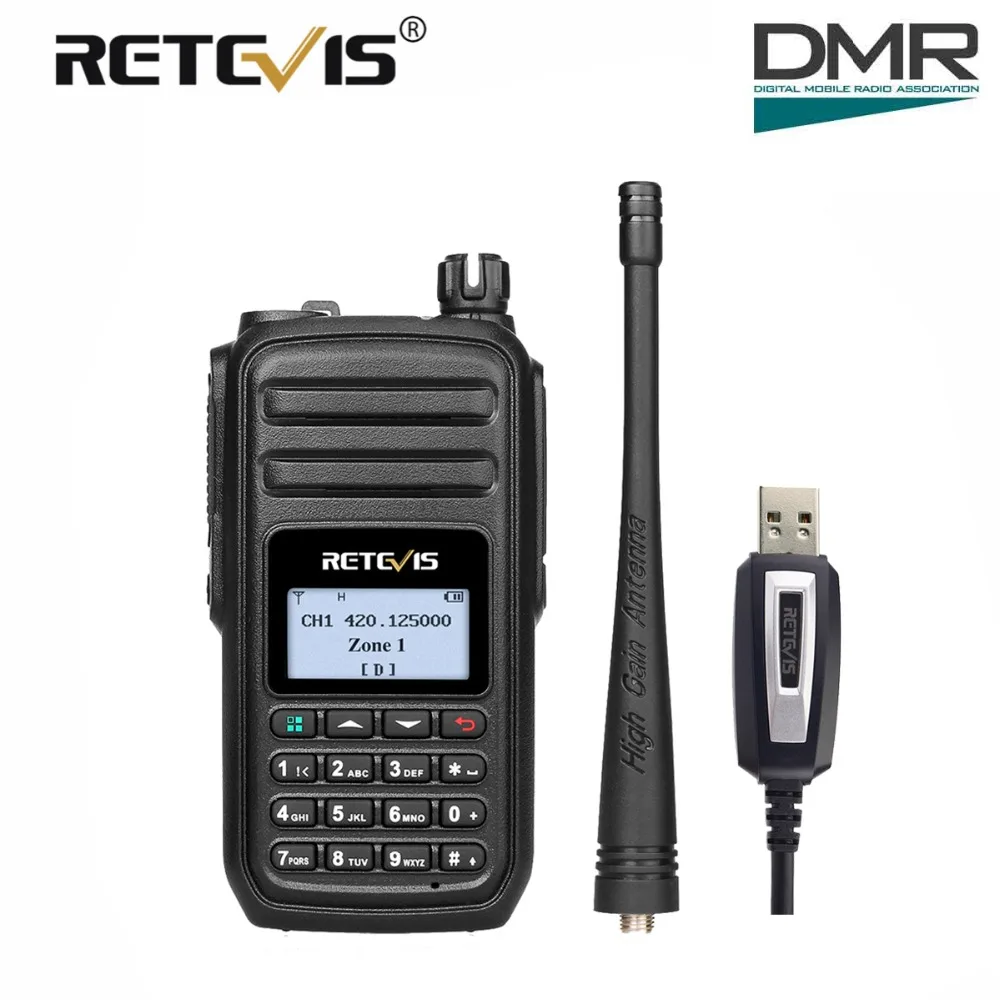

Retevis RT80 DMR Ham Radio Digital Walkie Talkie 5W 999CH UHF 400-480MHz VOX Portable Amateur Radio Hf Transceiver+Program Cable
- The Retevis RT80 is a DMR handheld walkie-talkie designed on the basis of Time Division Multiple Access (TDMA) technology. It supports three modes: digital, analog and digital-analog mixed and is compatible with existing conventional analog and DMR-based walkie-talkies.
- Retevis RT80 is working at UHF 400-480MHz, 999 channels, transmit power of 5W, vocoder type AMBE ++, compatible with RT3, RT8, RT81, RT82, but also other types of DMR walkie talkie which takes the same vocoder.
- The Retevis RT80 small size, it is suitable for single-handed operation, easy to carry, ABS shell can protect the product good fall.
- Simple operation, most of the features do not need to operate through the software, very playable, but also RT3 RT8 did not achieve the function.
- Various manufacturers use different technical solutions, encryption and SMS capabilities may not compatible, such as RT80 encryption cant communicate with RT3 normal encryption. When talking to motor radios, SMS and encryption functions cannot be used properly, because of technical design Problems, non-product issues.
Main Feature:
- DCDM(dual capacity direct mode)
- 999 Channels
- 999 Contacts
- 16 zone
- FM Radio
- Mixed receive (digital or analog)
- Private call/Group call/All call
- Encryption function
- Remote kill/stun/activate
- Message
- DTMF, PTT ID
- VOX function
- Scan function
- Emergency
- LCD Reverse
| General | |
| Model | RT80 |
| Frequency range | 400-480MHz |
| Channel | 999 Channels |
| Channel Spacing | 12.5/25KHz |
| Operating Voltage | 7.4V |
| Standard battery | Li-ion 1500mAh |
| Battery average working hours | 11/12(h) |
| Frequency stability | ±2.5 PPM |
| Operating Temperature | -10~55℃ |
| Antenna Impedance | 50 ohm |
| Dimension(H x W x D) | 105x53x29.5mm |
| Weight(with antenna) | 217g |
| Transmit | |
| Output Power | ≤5W |
| Modulation(analog) | 11KΦF3E 12.5KHz; |
| Modulation (digital) | 12.5KHz (data +voice):7K60FXW; |
| Spurious emission | -36dBm<1GHz; |
| SNR | 40dB 12.5KHz; |
| Audio distortion | ≤5% |
| Modulation limit | ±2.5 12.5KHz; |
| Audio response | ±3dB |
| Digital vocoder type | AMBE++ |
| Digital protocol | ETSI-TS102 361-1,-2 |
| Receiver | |
| Sensitivity (analog) | ≤0.3/0.22 μV(12dB SINAD) |
| Sensitivity (digital) | ≤0.3 μV/BER 5% |
| ACS | ≥65dB |
| Inter modulation | ≥65dB |
| Spurious response rejection | ≥65dB |
| S/R | 40dB 12.5KHz; |
| Audio output power | ≥750mW |
| Audio distortion | ≤5% |
| Audio frequency response | ±3dB |
| Conducted spurious emission | ≤-57dBm |
Retevis RT80 is suitable for the one who is new Amateurs.
1. Support mixed digital-analog reception, digital-analog hybrid scanning.
You can set the channel type to the mixed mode by software or keyboard operation, that is, a channel (frequency) not only can receive digital signals but also analog signals.(It receive what kind of signals depending on the which signals transmit firstly, digital or analog).
2. RT80 takes TDMA dual-slot technology.
which can achieve communication between the same frequency and two time-slots non-interference under repeater and direct mode. It will double the channel capacity, effective use of frequency resources and reduce costs (in some countries May charge based on frequency).
3. FM Radio function.
You can listen to colorful news and entertainment programs in your spare time.
4. Other keyboard operation function.
1) Setting the side key on the radio panel.2) Manually modify the walkie-talkie ID;3) Manually add the contact (single call, group call, all call)5.Screen upside-down.
Defined the side key to turn on the screen upside-down function, the screen can be rotated 180 ° when the radio hung in the shoulder position, you can easily observe the screen dynamics.
Package Includes:
- 1 x RT80 DMR Radio
- 1 x Antenna
- 1 x Li-ion Battery
- 1 x Charger
- 1 x Adapter
- 1 x Belt Clip
- 1 x Sling
- 1 x Users Manual
- 1 x USB Programming Cable (as a gift)
