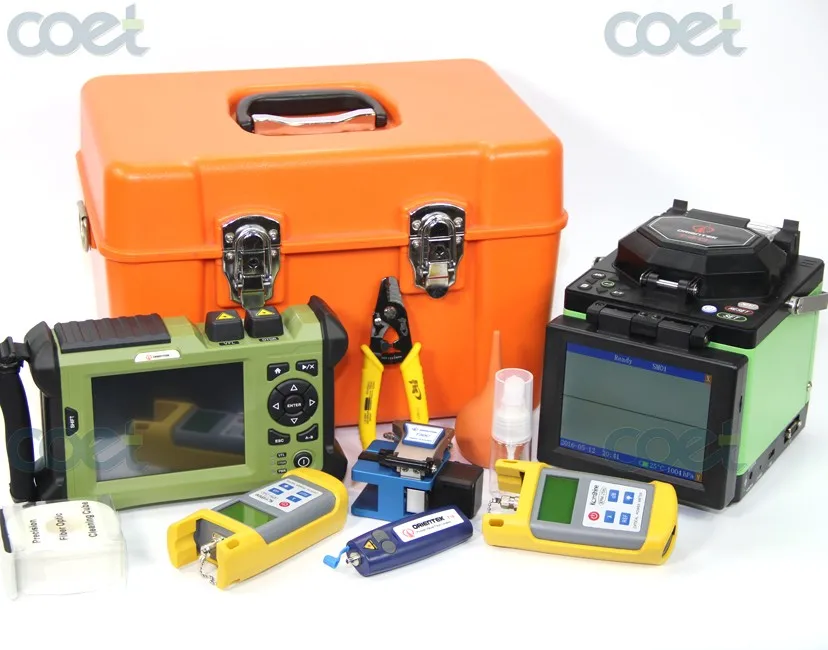

T40 1310/1550+1625nm Meter Otdr Fusion Orientek Light Source Pon Splicer Ss24af Ftth Power Fault Visual Bria Virgie Rating: 4.2 out of 5
Fantastic product could enhance the top quality of your life. Qualified to be acquired. Inexpensive rate as well as complimentary shipping. Allow's acquire Promo T40 1310/1550+1625nm Meter Otdr Fusion Orientek Light Source Pon Splicer Ss24af Ftth Power Fault Visual before rates rise.
Fantastic Discount T40 1310/1550+1625nm Meter Otdr Fusion Orientek Light Source Pon Splicer Ss24af Ftth Power Fault Visual product can boost the high quality of your life. Eligible to be purchased. Economical cost as well as complimentary delivery. Let's purchase prior to prices increase. If it will only undermine your work and also will certainly not offer you the kind of high quality that you require in the product, you don't need more affordable items. With the greater price you can be sure that your loan deserves costs in this product...
Complete perfect product!
1: ORIENTEK T40 FUSION SPLICER:
PAS Core to Core Alignment System, Auto Heating.Support English, Spanish and Portuguese
Application:Widely used for SM and MM Quartz Fiber with diameter 80-150μm, Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Description:The Fiber Splicing Machine Orientek T40 with a new fully-digital design, core to core alignment, PAS Technology (Profile Alignment System), Standard accessories. Multiple language menu, 5.7 inch digital high definition LCD display, 8 Sec. splice time, 25 Sec. Tube-heat time.
Features:Orientek Most hot-selling fusion splicer, especially among distributors
Support English, Spanish, Portugese
The advanced core to core fiber profile alignment system(PAS)
Friendly smart GUI
- Real time calibrating system, parameter neednt be adjusted
X/Y axes were displayed meanwhile, Magnification up to 304 times
8 Sec. splice time, 25 Sec. tube-heat time
Hig High-resolution true color 5.7 inch LCD display
Four display modes, fiber core visible
Store 4000 groups of splice result
USB interface - for updates + result transfers
Built-in high capacity battery, support 300 times splicing and heating, to meet one days’ work
Long Electrode Lifetime, up to 4000 times
Three Splicing modes: auto, half-auto, manual
Close shield splice automatically, Close heater lid heat automatically
- Built-in super high-brightness LED supply convenience for night work
One year Warranty
With CE Certificate
Used best at Trunk
Specifications:
Applicable fibers | SM MM DS NZDS |
Fiber diameter | Cladding diameter:80-150um; Coating diameter:100-1000um |
Fiber count | Single |
Fiber cleaved length | 12-16mm (Coating diameter:250um) |
Actual average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
Typical splicing time | Typical 9 sec (standard SM fiber) |
Return loss | >60dB |
Splicing mode | Auto Calibrate Normal Special |
Fiber aligning method | Meticulous,Core,Clad,Manual |
Splicing program | 53 (templet), 40(user) |
Tube heating program | 9 (templet),24(user) |
Tube typical heating time | Typical 25 sec |
Protection sleeve length | 60mm, 40mm |
Storage of splice result | 4000 results, 20 parameter per result |
Fiber image magnification | 300X (X or Y view),150X (X and Y view) |
Battery capacity | Typical 160 cycles (splice/tube heat with inner Li-battery) |
Monitor | 5.7 inch color LCD monitor |
Tension test | 2N |
Electrode life | 4000 |
Terminal | USB |
Power supply | AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V |
Operating condition | 0-5000m above sea level, -10-50C Max wind velocity of 15m/s |
Dimension | 150mm(L)×150mm(W)×150mm(H) |
Weight | 2.55Kg excluding battery,3.05Kg including battery |
T40 Fusion Splicer
High Precision Fiber Cleaver
Fiber Coat Stripper
Carrying Strap
Alcohol Pump Bottle
Internal Battery
Cooling Tray
Dust Blower
AC Adaptor & Charger
Spare Electrodes (one pair)
User Manual instruction CD
Carrying Case
* Come with FC+SC+LC Adaptors *
* English + Spanish Languages *
* Test Results Analysis softeware *
Specially designed for FTTX Application:FTTx application installation and maintenance, fiber R&D and producing testing.
1. to test the length, fiber loss connector loss and other physical characteristics of fiber.
2. to locate events on fiber cables precisely.
Feature:Rugged design, light weight and easy operation
Applicable fiber: Networks with PLC Splitters
<3m extra-short event dead zone
Wavelength: 1310/1550+1625nm
Up to 32/30/28dB High Dynamic Range
Distance Range: 4,8,16,32,64,128,256km
Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
Memory capacity >800 traces
Built-in friendly-environment lithium battery with high capacity for over 8 hours of operating life
Display:640×480, 5.6 inch low-reflection TFT-LCD (touch screen)
One year Warranty
With Calibration Certificate and CE Certificate
Support English & Spanish
Specifications:| Model | = | TR600 SS24AF PON OTDR |
| Wavelength(nm) | = | 1310/1550+1625 |
| Dynamic range(dB) | = | 32/30/28 |
| Pulse width (ns) | = | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |
| Display | 5.6 inch TFT LCD touch screen | |
| Event blind zone (m) | = | 3 |
| Attenuation blind zone (m) | = | 13 |
| Linearity (dB/dB) | = | ±0.05 dB/ dB |
| Loss threshold (dB) | = | 0.05 |
| Loss resolution ratio (dB) | = | 0.01 |
| Sampling resolution ratio (m) | = | 0.125 to 8 |
| Sampling point | = | 32k |
| Distance uncertainty (m) | = | ±(1 m + 5×10-5× distance + sampling interval) |
| Distance scope (km) | = | 0.3 to180 |
| Memory capacity of trace | = | SD Card (4G), > 10000 pieces |
| Duration of measurement | = | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
| Optical interface | = | FC/UPC+SC/UPC+LC/UPC |
| Data interface | = | USB interface, SD card interface |
| Power supply | = | Lithium battery; continuing working duration ≥ 8 hours |
| Warranty period | = | 12 months |
Carrying Case
OTDR with Battery Pack
Calibration & Test Report
SD Card
FC & SC & LC connectors
AC Adaptor
Power Supply
User Manual & Trace Manage Software (CD)
3: Mini Optical Power Meter + Mini Light Source + Visual Fault Locator:- Six wavelenghts Optical Power Meter for SM & MM
- Dual Wavelengths 1310/1550nm Optical Light Source for SM
- Pocket size Visual Fault Locator
