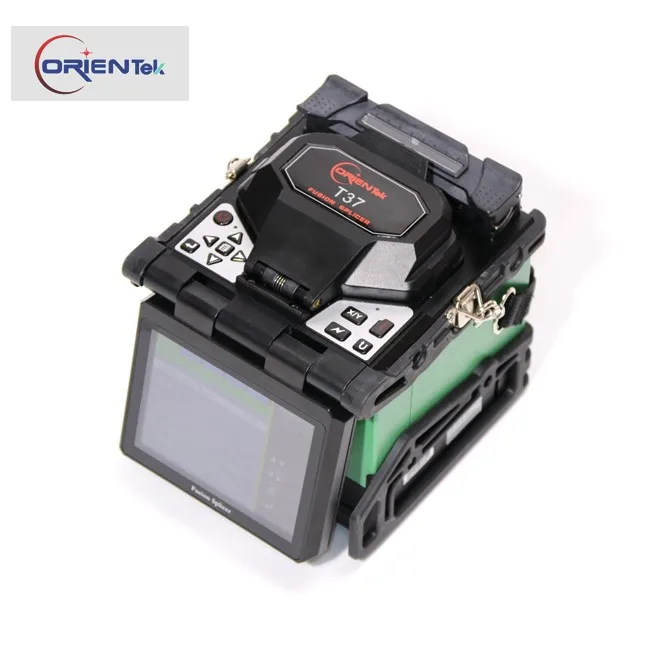

Free Shipping Orientek T37 Fusion Splicer Core Alignment Fusion Splicing Machine
The All -New
T37 combines the functions of both splicing and heating for those cables which are popular in FTTX : 250μm fiber,900μm fber, flat cable, fber jumper. This splicer is the smallest, lightest and fastest among all the existing core alignment splicers . Performs 200 cycles of fusion splicing and sleeve heating with the standard battery . Reliability and Durability: Anti-Shock, Waterproof, Dustproof .
Features :
- Shake Proof, Dust Proof and Water Proof
- Take only 9 Seconds for Splicing, 30 Seconds for Heating
- Average Splicing Loss: 0.02dB
- Up to 200 times of continuous splices and heat
- Splice 0.25mm/0.9mm/3.0mm/ Flat cable
- 5.0 " Color LCD Monitor
- Ideal for both indoor and outdoor splicing
- Electrode Life: 4,000 times splicing
- Attached Night Light
Specification :
Subject | Description |
Alignment | IPAS Core to Core Alignment (Image Pattern Analysis Alignment System) |
Applicable fibers | SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655),EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657 |
Compatible Fiber / Cable | 0.25mm/0.9mm/3.0mm/ Flat/Drop cable |
Fiber cleave length | 250μm (Coat) : 8 ~ 16mm, 900μm : 16mm |
Typical splice loss | SMF : 0.02dB, MMF : 0.01dB, DSF : 0.04dB, NZDSF : 0.04dB |
Return loss | Less then -60dB |
SPLICE Time | SPLICE : Typical 9sec, Tube Heat : Typical 30sec with S-160(60mm) Tube |
Program | SPLICE Mode : 100, Heat Mode : 50 |
Storage of splice result | 4,000 results |
Operating altitude | 0 ~ 5000m above sea level |
Operating condition | -10 to 50 , humidity : 95%, non-Condensing |
Storage condition | -40 to 80 , 0 to 95% RH |
Protection | Wind 15m/s , shock proof, water proof, dust proof |
Size, Weight | 130W 130L 135H (include Monitor), 2.2Kg (Exclude Battery) |
Terminal | USB, External Power |
Power | DC 14.8V Battery (7800mAh), 100 ~ 240V AC Adapter |
Additional power | DC 12V automobile power outlet available |
No of splice/Heating with Battery | 200cycle, lithium polymer batteries |
Electrode | 4,000 times splicing without exchange |
Mechanical proof test | 2N / 4.4N (OPTION) |
Display | Two CMOS cameras and 5.0 color LCD monitor |
Fiber view and magnification | X/Y 300X, 170X |
Standard Package :
- T37 Arc Fusion Splicer x1
- AC Adapter x1
- Fiber Stripper x1
- Spare Electrodes x1
- Battery Pack x1
- Alcohol Bottle x1
- Cleaning Wipes x1
- Flat Cable Stripper x1
- Cooling Tray x1
- Fiber Cleaver x1
- Manual x1
- Carrying Case x1
