Splicingr Fusion & Sv20a Singlemode Tr600 1310/1550nm Core Alignment Otdr Splicer Orientek Eligah Wes Rating: 4.8 out of 5
Terrific Special Splicingr Fusion & Sv20a Singlemode Tr600 1310/1550nm Core Alignment Otdr Splicer Orientek goods can enhance the quality of your life. Qualified to be purchased. Inexpensive price and cost-free delivery. Allow's buy Promo Splicingr Fusion & Sv20a Singlemode Tr600 1310/1550nm Core Alignment Otdr Splicer Orientek before costs rise.
Take a look at our Discount Splicingr Fusion & Sv20a Singlemode Tr600 1310/1550nm Core Alignment Otdr Splicer Orientek review to get the finest products you desire. You could read detail details concerning this goods below. Checkout our New Splicingr Fusion & Sv20a Singlemode Tr600 1310/1550nm Core Alignment Otdr Splicer Orientek testimonial to obtain the excellent goodss you favor. You can read detail information concerning this product below. product prices and accessibility are exact since the date/time showed and are subject to transform. Any kind of cost and also availability information displayed on this website at the time of purchase will use to the purchase of this New Splicingr Fusion & Sv20a Singlemode Tr600 1310/1550nm Core Alignment Otdr Splicer Orientek item.
Inexpensive rate and totally free shipping. Let's get prior to rates increase.

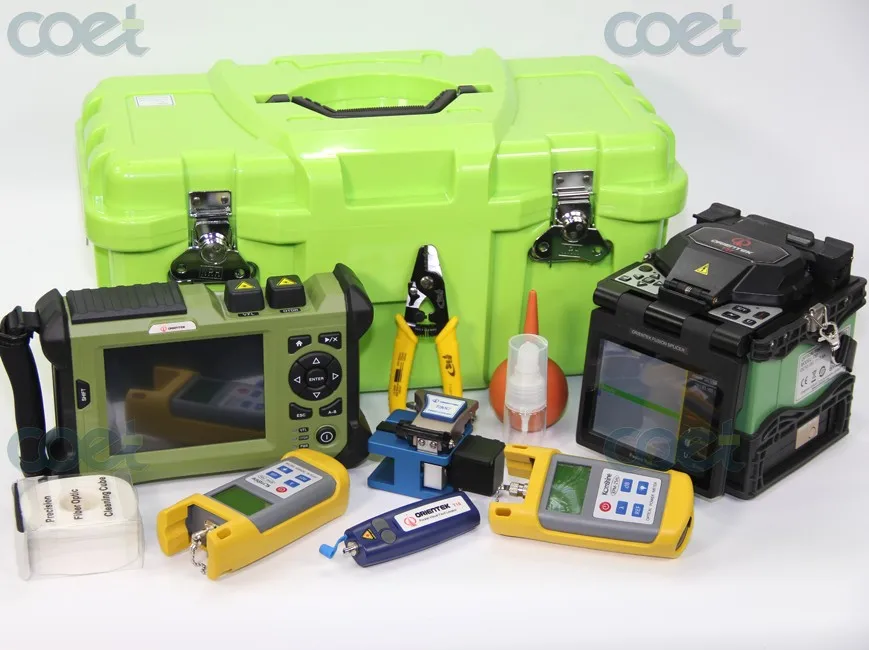

1. Orientek T37 Multi-Language Core Alignment Fiber Optic Fusion Splicer
The All -New
T37 combines the functions of both splicing and heating for those cables which are popular in FTTX : 250μm fiber,900μm fber, flat cable, fber jumper. This splicer is the smallest, lightest and fastest among all the existing core alignment splicers . Performs 200 cycles of fusion splicing and sleeve heating with the standard battery . Reliability and Durability: Anti-Shock, Waterproof, Dustproof .
Features :- Shake Proof, Dust Proof and Water Proof
- Take only 9 Seconds for Splicing, 30 Seconds for Heating
- Average Splicing Loss: 0.02dB
- Up to 200 times of continuous splices and heat
- Splice 0.25mm/0.9mm/3.0mm/ Flat cable
- 5.0 " Color LCD Monitor
- Ideal for both indoor and outdoor splicing
- Electrode Life: 4,000 times splicing
- Attached Night Light
| Subject | Description |
| Alignment | IPAS Core to Core Alignment (Image Pattern Analysis Alignment System) |
| Applicable fibers | SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655),EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657 |
| Compatible Fiber / Cable | 0.25mm/0.9mm/3.0mm/ Flat/Drop cable |
| Fiber cleave length | 250μm (Coat) : 8 ~ 16mm, 900μm : 16mm |
| Typical splice loss | SMF : 0.02dB, MMF : 0.01dB, DSF : 0.04dB, NZDSF : 0.04dB |
| Return loss | Less then -60dB |
| SPLICE Time | SPLICE : Typical 9sec, Tube Heat : Typical 30sec with S-160(60mm) Tube |
| Program | SPLICE Mode : 100, Heat Mode : 50 |
| Storage of splice result | 4,000 results |
| Operating altitude | 0 ~ 5000m above sea level |
| Operating condition | -10 to 50 , humidity : 95%, non-Condensing |
| Storage condition | -40 to 80 , 0 to 95% RH |
Protection | Wind 15m/s , shock proof, water proof, dust proof |
| Size, Weight | 130W 130L 135H (include Monitor), 2.2Kg (Exclude Battery) |
| Terminal | USB, External Power |
| Power | DC 14.8V Battery (7800mAh), 100 ~ 240V AC Adapter |
| Additional power | DC 12V automobile power outlet available |
| No of splice/Heating with Battery | 200cycle, lithium polymer batteries |
| Electrode | 4,000 times splicing without exchange |
| Mechanical proof test | 2N / 4.4N (OPTION) |
| Display | Two CMOS cameras and 5.0 color LCD monitor |
| Fiber view and magnification | X/Y 300X, 170X |
Standard Package :
- T37 Arc Fusion Splicer x1
- AC Adapter x1
- Fiber Stripper x1
- Spare Electrodes x1
- Battery Pack x1
- Alcohol Bottle x1
- Cleaning Wipes x1
- Flat Cable Stripper x1
- Cooling Tray x1
- Fiber Cleaver x1
- Manual x1
- Carrying Case x1
* Come with FC+SC+LC Adaptors *
* English + Spanish Languages *
* Test Results Analysis softeware *
Feature:
@ Rugged design, light weight and easy operation@ Applicable fiber: Networks with PLC Splitters@ <3m extra-short event dead zone@ Distance Range: 4,8,16,32,64,128km@ Pulse with: 10,30,80,160,320,640,1280,5120,1024ns@ USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync@ Memory capacity >800 traces@ Built-in friendly-environment lithium battery with high capacity for over 8 hours of operating life@ Display:640×480, 5.6 inch low-reflection TFT-LCD (touch screen)@ One year Warranty@ With Calibration Certificate and CE Certificate@ Support English & SpanishStandard package
Carrying Case
OTDR with Battery Pack
Calibration & Test Report
SD Card
FC & SC & LC connectors
AC Adaptor
Power Supply
User Manual & Trace Manage Software (CD)
3. Optical Power Meter T25M + Light Source T-25M-S+ Visual Fault Locator T10
1. Six wavelenghts Optical Power Meter for SM & MM
2. Wavelengths 1310/1550nm Optical Light Source for SM
3. Pocket size Visual Fault Locator
Contact Us
Any inquiry, please contact us by email or Trade Manager, emails will be responded within 24 working hours.
> Person:Karen
> Position: Sales
> Skype: live:karen_12661
> wechat:+86 1875 1902 182
> Mobile:+86 1875 1902 182 (whatsapp)
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Splicingr Fusion & Sv20a Singlemode Tr600 1310/1550nm Core Alignment Otdr Splicer Orientek
