Live Http Video Channels Ip Encoder To Udp Hls Rtp Best Hdmi Mpeg4 1080i Rtmp Mima Toney Rating: 4.7 out of 5
Economical cost and also cost-free delivery. Let's acquire before costs rise.
An excellent item or solution is produced and also offered of training course to give comfort as well as make you comfy when you utilize it. One of these products is actually very understanding of your demands for this special product.
Inexpensive rate and totally free shipping. Allow's get before rates rise.
Good
We also produce 1U Rack model of this product, please check (Click it to see).
Connection Schematic Diagram

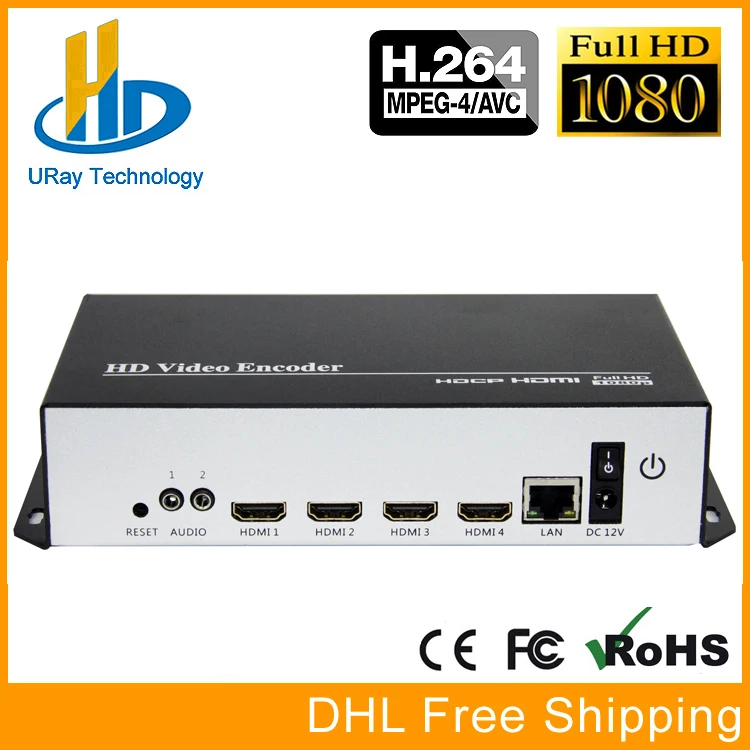

The four channels MPEG-4 /H.264 AVC HDMI video encoder(Model No. UHE264-4-Mini) is our newest professional HD audio and video encoding device with powerful functionality. It is equipped with 4 channels HDMI and 2 channels external audio(3.5mm) input supporting H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and four video streamings output each channel, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, HLS, FLV, ONVIF. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.
The channel 1 and channel 2 support support HDMI embedded audio or external audio(3.5mm) optional from output video streaming.
Not only four channels, we also produce multichannel HDMI video encoder which is packed by 1U /3U box. For 3U rack, max supports 16pcs encoder cards to be installed.
Embedded HiLinux System, stable and effective
Support H.264 /AVC baseline /main /high profile encoding
From 32Kbit/s to 32Mbit/s by CBR /VBR code rate controlling each channel
Support HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV, ONVIF streaming protocol
Support image, logo, text parameter settings on the output video streamings
Support English WEB operating interface and language customizable
Support output video streamings resolution setting(Max up to 1920 * 1080P /60fps)
Support up to 4 video streamings output each channel
Support external audio superposition for channel 1 and channel 2
Provide SDK and API for secondary development
Support GOP frame rate settings
Network interface full-duplex mode with 1000M speed
Support HDCP and HD blue-ray
A wide area network remote management (Web control panel)
Support different protocol transmission for the 4 output video streamings each channel
Support MP3 and AAC and AAC+ and AAC++ audio coding format selection
A click to restore the default configuration
Stable and effective, support 7 x 24h working time
Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed
| Model No. | UHE264-4-Mini |
| Video | |
| Input Interface | 4 * HDMI + 2 * Stereo Audio(3.5mm) |
| Support Resolution | Max Support 1920 x 1080P@60fps |
| Output Interface | 1 * Ethernet Port(RJ45) |
| Video Encoding | MPEG-4 /H.264 AVC |
| Code Rate Control | From 32Kbps to 32Mbps For Each Channel |
| Code Rate | CBR /VBR |
| GOP Structure | IBBP |
| Video Pre-processing | De-interlacing, Noise Reducing & Sharpening |
| Audio | |
| Audio Encoding | AAC, AAC+, AAC++, MP3 |
| Sampling Rate | Auto |
| Bit-rate Option | 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K,384K |
| Sampling Accuracy | 24 Bit |
| Audio Data-rate | 64Kb /S to 384Kb /S |
| Network | |
| RJ45 | 1000M Interface |
| Program Streaming | HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV, ONVIF |
| Control Panel | WEB Panel (Language Customizable) |
| Firmware Update | Enable by Uploading Files To Dashboard |
| General | |
Dimension (W* L* H) | 163 * 130 * 50 /mm |
| Gross Weight | 0.5KG |
| Temperature | 0 to 45(For working), -20 to 80(For storing) |
| Input Voltage | DC 12V /1A |
| Power Consumption | 5W |
IPTV
Streaming Media Server (Wowza, Xtream Codes, Flash Media Server, etc.,)
Online Live Broadcast(Youtube, Facebook, Ustream, etc.,)
NVR (Net Video Recorder)
Teaching / Campus Broadcast
Hotel TV System
Video Conference
Digital Signage
Recording System (Replace Video Capture Card)
1).If you prefer other payment method (Paypal, Bank Transfer, West Union ect,.), please contact us.
2).If you are worried about Too Much Custom Dues, please contact us.
3).If you require Some Other Accessories (Such As HDMI Cable Or Video Converter Or Else), please contact us.
4).If you require Logo Print, SDK And API, Other OEM of the product, please contact us.
5).If you require More Discount For Bulk Order(>5Pcs), please contact us.
6).If you want to know More Product Details, please contact us.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Live Http Video Channels Ip Encoder To Udp Hls Rtp Best Hdmi Mpeg4 1080i Rtmp
