Sc Optic Fiber Ftth Fttb Splitter 1*16 Fttx Plc George Russel Rating: 5 out of 5

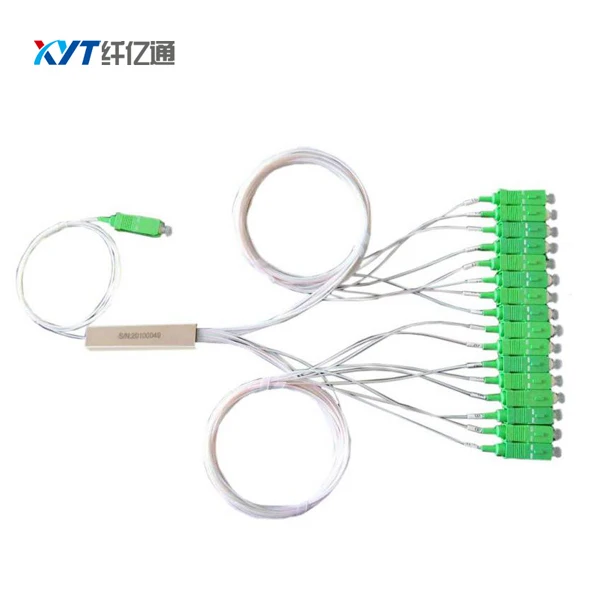

FTTH FTTX FTTB SC connector 1*16 fiber optic PLC splitter free shipping
Features
Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength
Applications
FTTX Systems
LAN, WAN and metro networks
Analog/Digital passive optical networks
CATV networks
Other applications in fiber optic systems
Specifiation
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | ||||
| Operating Wavelength (nm) | 1260-1650 | |||||||||
| Fiber Type | G657A1 or customer specified | |||||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | ||||
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | ||||
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | ||||
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | ||||
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | ||||
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | ||||
| Temperature Stability (-40-85 C)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | ||||
| Operating Temperature (C) | -40-85 | |||||||||
| Storage Temperature (C) | -40-85 | |||||||||
| Bare fiber Dimension (mm) | 50×4×4 | 50×7×4 | 60×7×4 | 60×12×4 | ||||||
| ABS Module Dimension (mm) | 100×80×10 | 120×80×18 | 120*80*18 | 140×115×18 | ||||||
| Steel tube Dimension (mm) | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | ||||||
| Insert type Dimension (mm) | 130*100*25 | 130*100*50 | 130*100*102 | 130*100*206 | ||||||
Specified without connectors.
Ordering information
| Product | Port | Input Pigtall Style | Input Connector | Output Pigtall Style | Output Connector | Fiber Length |
| PLC | 0102=1x2 0104=1x4 0108=1x8 0116=1x16 0132=1x32 0164=1x64 | 0=bare fiber 1=900um Loose tube 2=900umJacket 3=2.0mmcable 4=3.0mmcable | 0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC | 0=bare fiber 1=900um 2=900um 3=2.0mm 4=3.0mm | 0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC | 0=0.5m 1=1m 2=1.5m 3=2m |
When pictures and descriptions do not match,The description and title are correct
The picture is only for reference. product should same as the description. If you are confused. please contact service.
