High Vhf/uhf Uv-5r Dual Radio Power 136-174/400-520mhz Band Super Handy Walkie Hunting Fm 5w Gena Zaid Rating: 4.4 out of 5
Inexpensive price and also free shipping. Let's buy before prices climb.
As a product that helps your requirements to obtain comfort, of training course this item is really fascinating to get. This Clearance High Vhf/uhf Uv-5r Dual Radio Power 136-174/400-520mhz Band Super Handy Walkie Hunting Fm 5w goods is very setting friendly. Where to cleanse it is very easy. You do not need to look for services to clean up your acquired products, just do it yourself in your home utilizing the standards that have actually been provided. This straightforward and also classy layout is best for those of you that like the minimalist design in every goods you have. Furthermore, there are much more different attributes that you could obtain as well as of program really helps you to facilitate all your active life.
Welcome order from Aliexpress APP.More surprises, More discounts

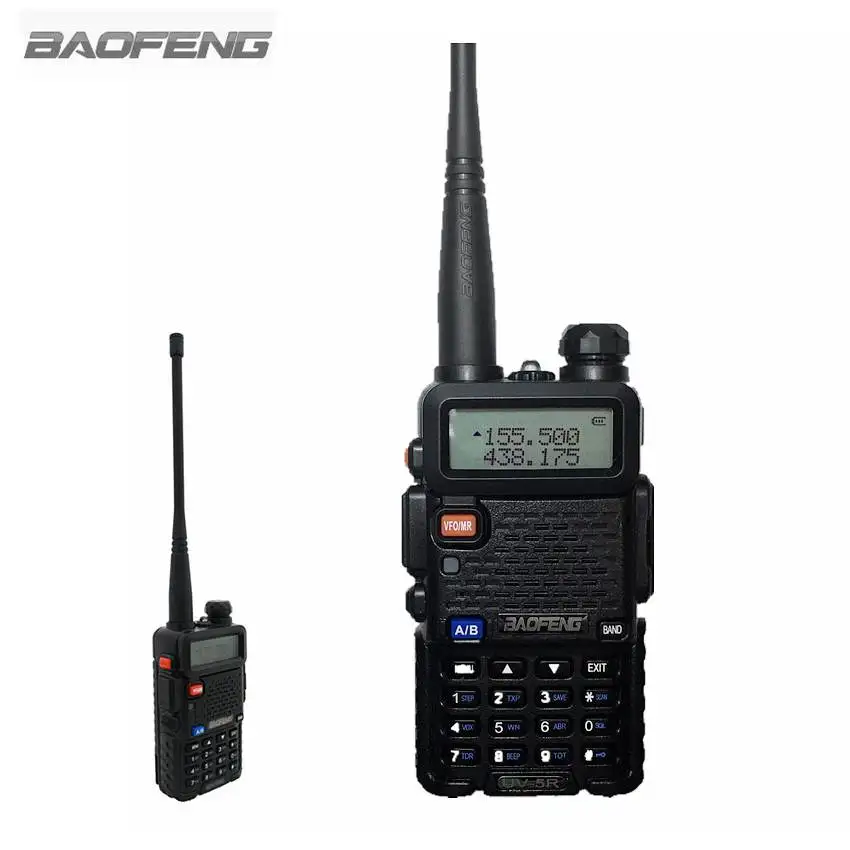

BaoFeng UV-5R long-range Wireless Professional Portable Walkie Talkie Dual Band Ham Radio
Main Feature
-
Dual band / dual display / dual standby
-
Durable wear resistant
-
Shell material: environmental protection PC
-
Sensitive and durable
-
Rubber keyboard
-
LED display
-
The flashlight functio
VHF/ UHF DUAL-BAND TWO WAY RADIO
Frequency Range: 136-174 / 400-520MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Output Power: 4 /1Watts
128 Channels
50 CTCSS and 104 CDCSS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz
ROGER SET
SMA-FEMALE ANTENNA
ALL ORIGINAL PARTS from BAOFENG
Item number UV-5R
General
Frequency Range 65-108MHz (FM Receive only)
136-174MHZ and 400-520Hz (TX/RX)
Channel No. 128
Frequency Stability 2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
DimensionW x H x D 110 x 58x 32 mm
Weight 250gincluding battery, antenna
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kF3E / 11kF3E
Maximum deviation 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation 7W
Adjacent Ch. power -65dB(Wide) / -60dB(Narrow)
Pre-emphasis characteristics 6dB
Current 1.6A(5W)
CTCSS/DCS deviation 0.50.1kHz(Wide) / 0.30.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion 10%
Tips: since the transmission of radio waves will be affected by obstructions (such as buildings, trees), in many cases talk range cant arrive 5-10km, especial in urban area. Usually, In the lively downtown area, the radio conversation distance can reach 2-3km. Theoretically on the calm sea level can be achieved 10km
Walkie Talkie Show
Detail Show
Accessories Show
Handbag ： Storage Box/Bag Two Way Radio Hand Carring Case Bag For BAOFENG UV-5R UV-5RA UV-5RE Plus TYT Walkie Talkie/Interphone
Package show
Normal Package CONTAIN
(Turkey and Belarus, Belgium customer shipment without retail box, see shipping notes below )
1 x UV-5R (VHF136-174Mhz UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x 17cm long Antenna 136-174/400-520Mhz
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 2pin EURO oradaptor )
1 x PTT Earpiece for free
"Package 1" Contain:
1 x UV-5R (VHF136-174Mhz UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x 17cm long Antenna 136-174/400-520Mhz
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 2pin EURO oradaptor )
1 x PTT Earpiece
1 x USB programming cable with CD
"Package 2 " packing without retail box, it Contain:
1 x UV-5R (VHF136-174Mhz UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x 17cm long Antenna 136-174/400-520Mhz
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 2pin EURO oradaptor )
1 x PTT Earpiece
1 x Handcarry bag, black
We will send the correct Plug Adapter that suitable for the country in the shipping address:
1, Europe Plug adapter(2 Pin Round Pin): Europe countries, Russian, Middle East, Brazil，Argentina，Korea
2, USA Plug Adapter(2 Pin Flat Pin): United States, South America, Caribbean Canada, Janpan, Philippines, Thaihand
3, Australia/New Zealand 2 Pin Plug Adapter(Usually we will send the Conversion Chargers): Australia,New Zealand,
4, UK Plug adapter 3pin Flat Pin(usually we will send the Conversion Chargers):England, Scotland, Singapore, Malaysis,Vietnam
5. Turkey and Belarus, Belgium customer Notice: Due to your countries are strict for radio import, if you buy walkie talkie and without radio import certificate, pls order 1-2pcs per order, and we will ship out the goods without retail box, its easy for customs clearance.
Customer Question1.Q.What type do we have of Baofeng two way radio?
A.Baofeng—888S,UV-3R,UV-3R+,UV-5R,UV-5RA,UV-5RB,UV-5RC,UV-5RD,UV-5RE UV-,5RG,UV-5RT,UV-5RA PLUS,B5,B6,5RE +,UV-82,UV-8D,UV-8,UV-6.UV-A52...
2.Q.What is the difference between them?
A.888S is UHF:400-470MHz. B5/B6/3R/3R+ is VHF:136-174 UHF:400-470MHz. UV-8D is UHF:400-480MHz
UV-5R,UV-5RA,UV-5RB,UV-5RC,UV-5RD,UV-5RE UV-,5RG,UV-5RT,UV-5RA PLUS,B5,B6,5RE +,UV-82 is VHF:136-174 UHF:400-520MHz.The mainboard is same.
UV-3R is SMA-Male antenna.others is SMA-Female antenna.
3.Q.product grade?
A.5RE plus,UV-82,UV-8D>UV-5R,UV-5RA,UV-5RB,UV-5RC,UV-5RD,UV-5RE UV-,5RG,UV-5RT,UV-5RA PLUS,B5,B6>3R 3R plus> 888S. The cost performance of UV-5R is best .
Certificate show
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).High Vhf/uhf Uv-5r Dual Radio Power 136-174/400-520mhz Band Super Handy Walkie Hunting Fm 5w
