• We also produce 1U Rack model of this product, please check (Click it to see).
• Connection Schematic Diagram

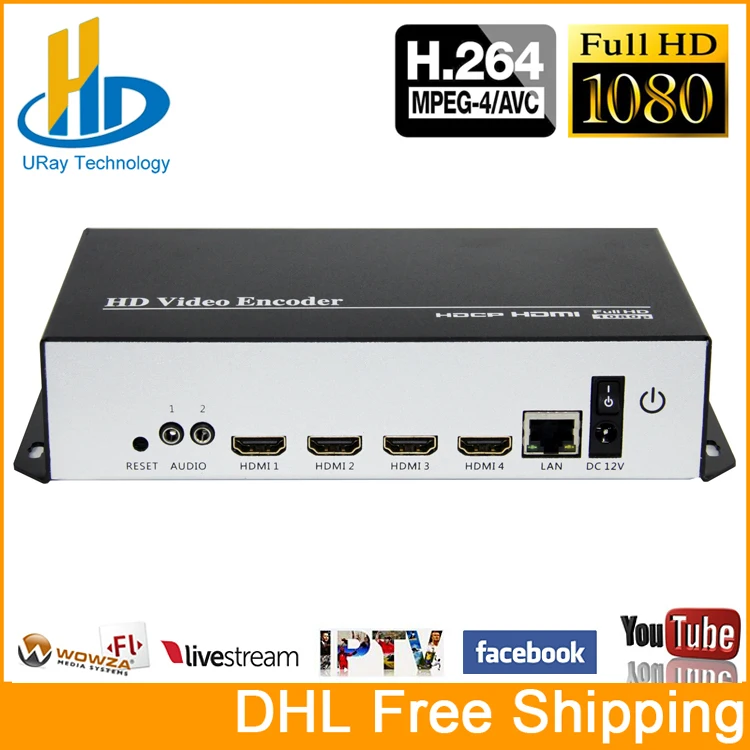

The four channels MPEG-4 /H.264 AVC HDMI video encoder(Model No. UHE264-4-Mini) is our newest professional HD audio and video encoding device with powerful functionality. It is equipped with 4 channels HDMI and 2 channels external audio(3.5mm) input supporting H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and four video streamings output each channel, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, HLS, FLV, ONVIF. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.
The channel 1 and channel 2 support support HDMI embedded audio or external audio(3.5mm) optional from output video streaming.
Not only four channels, we also produce multichannel HDMI video encoder which is packed by 1U /3U box. For 3U rack, max supports 16pcs encoder cards to be installed.
•Embedded HiLinux System, stable and effective
•Support H.264 /AVC baseline /main /high profile encoding
•From 32Kbit/s to 32Mbit/s by CBR /VBR code rate controlling each channel
•Support HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV, ONVIF streaming protocol
•Support image, logo, text parameter settings on the output video streamings
•Support English WEB operating interface and language customizable
•Support output video streamings resolution setting(Max up to 1920 * 1080P /60fps)
•Support up to 4 video streamings output each channel
•Support external audio superposition for channel 1 and channel 2
•Provide SDK and API for secondary development
•Support GOP frame rate settings
•Network interface full-duplex mode with 1000M speed
•Support HDCP and HD blue-ray
•A wide area network remote management (Web control panel)
•Support different protocol transmission for the 4 output video streamings each channel
•Support MP3 and AAC and AAC+ and AAC++ audio coding format selection
•A click to restore the default configuration
•Stable and effective, support 7 x 24h working time
•Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed
| Model No. | UHE264-4-Mini |
| Video | |
| Input Interface | 4 * HDMI + 2 * Stereo Audio(3.5mm) |
| Support Resolution | Max Support 1920 x 1080P@60fps |
| Output Interface | 1 * Ethernet Port(RJ45) |
| Video Encoding | MPEG-4 /H.264 AVC |
| Code Rate Control | From 32Kbps to 32Mbps For Each Channel |
| Code Rate | CBR /VBR |
| GOP Structure | IBBP |
| Video Pre-processing | De-interlacing, Noise Reducing & Sharpening |
| Audio | |
| Audio Encoding | AAC, AAC+, AAC++, MP3 |
| Sampling Rate | Auto |
| Bit-rate Option | 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K,384K |
| Sampling Accuracy | 24 Bit |
| Audio Data-rate | 64Kb /S to 384Kb /S |
| Network | |
| RJ45 | 1000M Interface |
| Program Streaming | HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV, ONVIF |
| Control Panel | WEB Panel (Language Customizable) |
| Firmware Update | Enable by Uploading Files To Dashboard |
| General | |
Dimension (W* L* H) | 163 * 130 * 50 /mm |
| Gross Weight | 0.5KG |
| Temperature | 0 to 45(For working), -20 to 80(For storing) |
| Input Voltage | DC 12V /1A |
| Power Consumption | 5W |
•IPTV
•Streaming Media Server (Wowza, Xtream Codes, Flash Media Server, etc.,)
•Online Live Broadcast(Youtube, Facebook, Ustream, etc.,)
•NVR (Net Video Recorder)
•Teaching / Campus Broadcast
•Hotel TV System
•Video Conference
•Digital Signage
•Recording System (Replace Video Capture Card)
