Considering that this Discount 1080p Udp Rtsp Hls Decoder H.264 Sd Vga Http Video Receiver Hd 1080i Cvbs item has high quality it is among the finest sellers on the market now and also many individuals are suggesting this product to their family as well as buddies.
• Product Usage And Connection Schematic Diagram

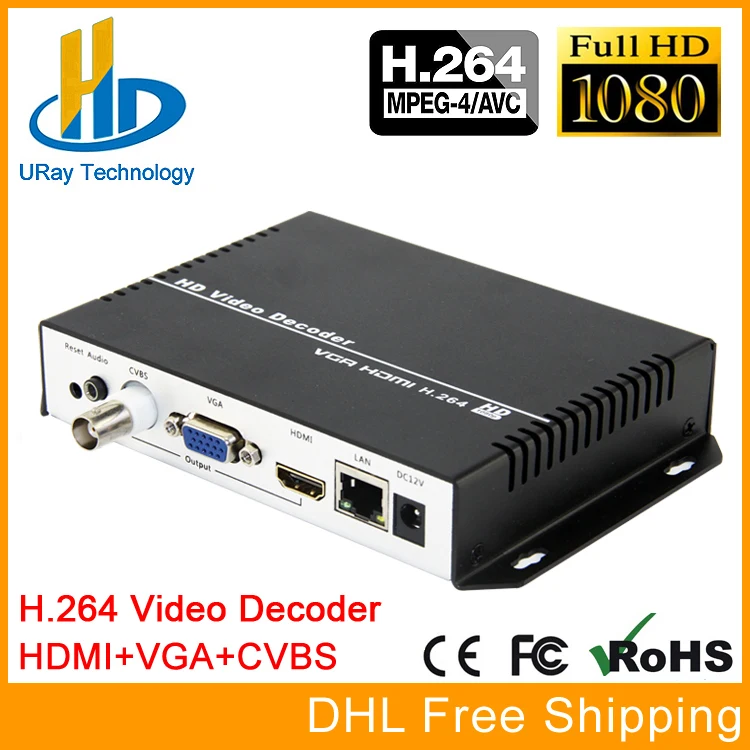

The MPEG-4 /H.264 AVC HDMI+VGA+CVBS+Stereo Audio(3.5mm) video decoder(Model No. UHCVD264-1) is our newest professional HD audio and video decoding device with powerful functionality. It is equipped with 1 channel 1000M ethernet port(RJ45) supporting H.264 /AVC video decoding format and AAC or MP3 audio decoding format and RTSP, HTTP, Multicast(UDP /RTP), RTMP, HLS, FLV, Unitcast streaming protocol, and 1 channel HDMI + VGA + CVBS + Stereo Audio(3.5mm) output simultaneously. Its high integration and cost-effective design make this device widely used in variety of field such as advertisement or wall display or live streaming broadcast ect.
Not only HDMI+VGA+CVBS H.264 decoder, we also produce HDMI + AV /CVBS decoder support H.265 & H.264 decoding and up to 4K resolution output. Except for HD video decoder, HD video encoder H.265 or H.264 is our main produced product.
•Support 1 channel HDMI + 1 channel VGA + 1 channel CVBS + 1 channel stereo audio(3.5mm) output simultaneously
•Support multiple brand set-top box and multiple brand IP camera decoding
•Support HTTP, Multicast(UDP /RTP), RTSP, RTMP, HLS, FLV, Unitcast streaming protocol
•Support multi video stream url decoding and switch the channel
•Support up to 1920 * 1080P /60fps HD video output
•Support only stereo audio(3.5mm) output(Optional from channel 1 to channel 4)
•Support image parameter setting(Luma, Contrast, Saturation, Hue)
•Support H.264 baseline /main /high profile decoding
•Embedded HiLinux System, stable and effective
•Support network interface full-duplex mode with 1000M speed
•Low-power design
•Support upgrade frimware by web control panel
•Support english WEB operating interface and language customizable
•Support output video resolution setting(Max 1920*1080P /60fps)
•A wide area network remote management
•Support PAN /NTSC Optional For CVBS Output
•Stable and effective, support 7 x 24h working time
•A click to restore the default configuration
•Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed
| Model No. | UHCVD264-1 |
| Video | |
| Input Interface | 1000M Ethernet Port(RJ45) |
| Output Video Resolution | Max Support 1920 x 1080P /60fps |
| Output Interface | HDMI+VGA+CVBS Output Simultaneously |
| Video Decoding | H.264 /AVC |
| Image Parameter Setting | Luma, Contrast, Saturation, Hue Setting |
| Audio | |
| Audio Decoding | AAC, AAC+, AAC++, MP3, MP2, AC3 |
| Output | Stereo Audio(3.5mm) |
| Output Audio | Optional From Video Stream channel 1 to 4 |
| Network | |
| Ethernet Port(RJ45) | 1000M Interface |
| Program Streaming | HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV etc. |
| Control Panel | WEB Panel(Language Customizable) |
| Firmware Update | Enable by Uploading Files To Dashboard |
| General | |
Dimension (W* L* H) | 137 * 92 * 30 /mm |
| Gross Weight | 0.3KG |
| Temperature | 0 to 45(For working), -20 to 80(For storing) |
| Input Voltage | 12V /1A DC |
| Power Consumption | 5W |
1).If you prefer other payment method (Paypal, Bank Transfer, West Union ect,.), please contact us.
2).If you are worried about Too Much Custom Dues, please contact us.
3).If you require Some Other Accessories (Such As HDMI Cable Or Video Converter Or Else), please contact us.
4).If you require Logo Print, SDK And API, Other OEM of the product, please contact us.
5).If you require More Discount For Bulk Order(>5Pcs), please contact us.
6).If you want to know More Product Details, please contact us.
Shenzhen URay Technology Co., Ltd is a new technical enterprise with high speed and stable development. These years we are concentrating on the technical research and improvement, producing and marketing all types of HEVC /H.265 and H.264 /AVC video encoder and video decoder and video capture card. Our main product line is HDMI encoder and decoder, SDI encoder and decoder, VGA encoder and decoder, HDMI capture card, SDI capture card etc.. Presently these products are widely used in the industrial & enterprise & school & hospital etc.. Vast of video encoders and video decoders and video capture cards are exported overseas to many countries in different continent in a year. We are looking forward to the cooperation and development with the customers for creating a bright feature.
