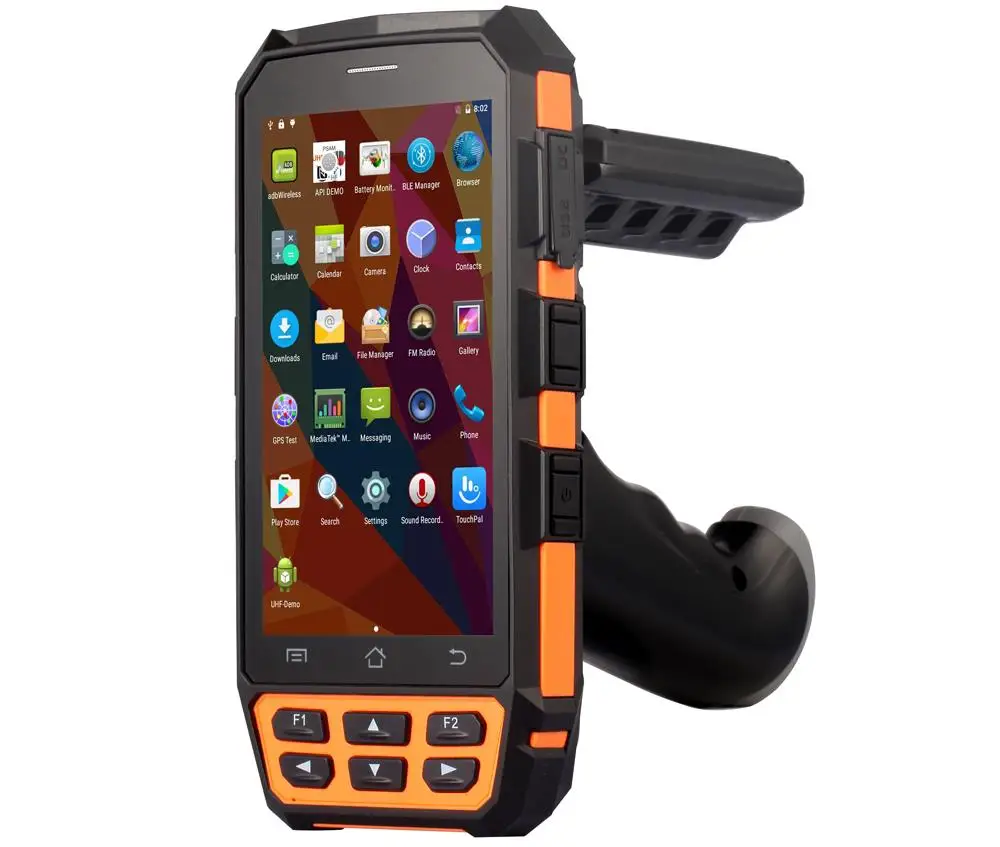

Android 8100mah Waterproof Laser Original Promotion Terminal Barcode Ip65 Reader Scanner 2d Phone Pda C5 Rugged Elias Xzavier Rating: 3.5 out of 5
Affordable rate and free delivery. Allow's acquire prior to rates climb.
Main Feature
Standard Version Feature
* 5.0 inch IPS 1280X720
* A3 1.3GHZ Quad Core
* RAM 2GB+ROM 16GB
* Standard 4500mAh ( if ADD Pistol Grip then Battery 8100mAH )
* Android 5.1OS
* Support 8.0MP Camera
* We Can provide the SDK software for second develoap for customers
*Support Band
4G: TDD-LTE Band B38 B39 B40
FDD-LTE Band B1 B3 B7
3G: WCDMA 850/1900/2100MHz
2G: GSM 850/900/1800/1900MHz
Optional Functions:(if you need optional Funcionts pls contact us before place order )
*1D 2D Laser Barcode Scanner
* ADD Pistol Grip ( 8100mAH Battery)
* RFID LF HFUHF
* Fingerprint
* PSAM SECURITY
* A Charger Dock
Standard Pacakge Include
1. 1 x Phone
2. 1 x Battery(4500mAh)
3. 1x Charger
4. 1 xUSB cable
5. 1x Manual
| SPECIFICATIONS | |||
| PHYSICAL CHARACTERISTICS | |||
| Dimension | 170mm(H)x85mm(W)x23mm(D)±2 mm | ||
| Weight | Net Weight :370g (including battery&wrist strap) | ||
| Display | Gorilla Glass 3 9H 5.0 inch TFT-LCD(720x1280)touch screen with backlight | ||
| Backlight | LED backlight | ||
| Keypads | 3 TP keys, 6 function keys, 4 side buttons | ||
| Expansions | 2 PSAM, 1 SIM, 1 TF | ||
| Battery | Rechargeable li-ion polymer, 3.7V, 4500mAh | ||
| PERFORMANCE CHARACTERSTICS | |||
| CPU | A53 1.3GHz quad-core | ||
| Operating System | Android 5.1 | ||
| Storage | 2GB RAM+16GB ROM MicroSD(max 32GB expansion) | ||
| USER ENVIRONMENT | |||
| Operating Temp. | -20° to 50° | ||
| Storage Temp. | -20° to 70° | ||
| Humidity | 5%RH to 95%RH(non-condensing) | ||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | ||
| Sealing | IP65, IEC compliance | ||
| ESD | ±15kv air discharge, ±8kv direct discharge | ||
| DEVELOPMENT ENVIRONMENT | |||
| SDK | HHW Software Development Kit | ||
| Language | Java | ||
| Environment | Android Studio or Eclipse | ||
| DATA COMMUNICATION | |||
| WWAN | 4G: TDD-LTE Band B38 B39 B40 FDD-LTE Band B1 B3 B7 3G: WCDMA 850/1900/2100MHz 2G: GSM 850/900/1800/1900MHz | ||
| WLAN | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | ||
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
| DATA CAPTUER | |||
| BARCODE READER(OPTIONAL) | |||
| 1D barcode | 1D laser engine | Honeywell N431x or Symbol SE955 | |
| Symbologies | All major 1D barcodes | ||
| 2D barcode | 2D CMOS Imager | Honeywell N6603 | |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | ||
| COLOR CAMERA | |||
| Resolution | 8.0 megapixel | ||
| Lens | Auto-focus with LED flash | ||
| RFID READER(OPTIONAL) | |||
| RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) | |
| Protocol | ISO 11784&11785 | ||
| R/W Range | 2cm to 10 cm | ||
| RFID HF | Frequency | 13.56MHz | |
| Protocol | ISO 14443A&15693 | ||
| R/W Range | 2cm to 8cm | ||
| RFID UHF | Frequency | 865~868MHz or 920~925MHz | |
| Protocol | EPC C1 GEN2/ISO 18000-6C | ||
| Antenna Gain | Circular antenna(2dBi) | ||
| R/W Range | 1 m to 1.5 m(tags and environment dependant) | ||
| Active 2.45GHz | Read range more than 200 m | ||
| 433MHz | Read range more than 200 m | ||
| ZigBee READER(OPTIONAL) | |||
| Protocol | IEEE 802.15.4 | ||
| Reading Range | 100 m to 200 m | ||
| FINGERPRINT READER(OPTIONAL) | |||
| Sensor | TCS1ST | ||
| Sensor type | Capacitive, area sensor | ||
| Resolution | 508 DPI | ||
| Performance | FRR<0.008%, FAR<0.005% | ||
| Capacity | 1000 | ||
| PSAM SECURITY(OPTIONAL) | |||
| Protocol | ISO 7816 | ||
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | ||
| Slot | 2 slots(maximum) | ||
| ACCESSORIES | |||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable | ||
| Optional | Magnetic charging cable; Carrying case | ||
