Rf 2.4ghz Transceiver Ebyte 2pcs Spi Nrf24l01+pa+lna Range 20dbm Long Wireless E01-ml01dp5

Luxury DIY Parts Promotion Sale Items Collections with Fast Shipping Delivery from Trusted Market Goods Choice Happy Consumer Review provide Rf 2.4ghz Transceiver Ebyte 2pcs Spi Nrf24l01+pa+lna Range 20dbm Long Wireless E01-ml01dp5.
Rf 2.4ghz Transceiver Ebyte 2pcs Spi Nrf24l01+pa+lna Range 20dbm Long Wireless E01-ml01dp5 Sam Leopoldo Rating: 4.5 out of 5

Get Discount Now! Only US $7.09/piece at this time. Hurry buy Now before back to normal price! Normal price US $9.99 or you can Check price now. Dont waste your time. Buy Now only at AUDIO LOVER Store Trusted Seller Store!

>>> Check Price for Rf 2.4ghz Transceiver Ebyte 2pcs Spi Nrf24l01+pa+lna Range 20dbm Long Wireless E01-ml01dp5

Terrific item can boost the quality of your life. Eligible to be acquired. Low-cost rate and also free delivery. Allow's acquire prior to costs rise.

Read Before You Buy itDear friends, if your order more than $5, Aliexpress will not allow us send the package by not available tracking information shipping method (like China Post Ordinary Small Packet Plus, 4PX Singapore Post OM Pro). So please choose China Post Air Mail/AliExpress Standard Shipping if your order more than $5. Or pls split your order, you can submit more than 2 orders to make sure your each order less than $5. Please choose China Post Air Mail/AliExpress Standard Shipping if you want a full tracking information. Thank you for your support! All the items will be dispatched within 2 business days after your payment is clear.• Note:China Post Air Mail/Parcel just belongs to worldwide post system which is much slowerthan Special Delivery. Items will arrive in 7-25 business days to worldwide usually. And thearrival time also depends on some factors and different areas. The general arrival time table isshown below for your inference:• If the item is defect when you receive it or you are not satisfied with it, please return it within14 days for a replacement or money back. But the items must be back in factory condition.Please contact us in advance and double check the return address before you return it.• If item is defective in 3 months, we could send you a new replacement for free or offer full refundafter we receive the defective item.• If item is defective in 12 months, we could also offer you replacement service, but you have topay for the extra shipping expenses. • Our aim is to provide Top Level Customer Service, and our customer service specialists arealways standing by to solve any of your problem. We greatly appreciate your 5-STAR POSITIVEfeedback and please do NOT leave negative feedback without asking for help.

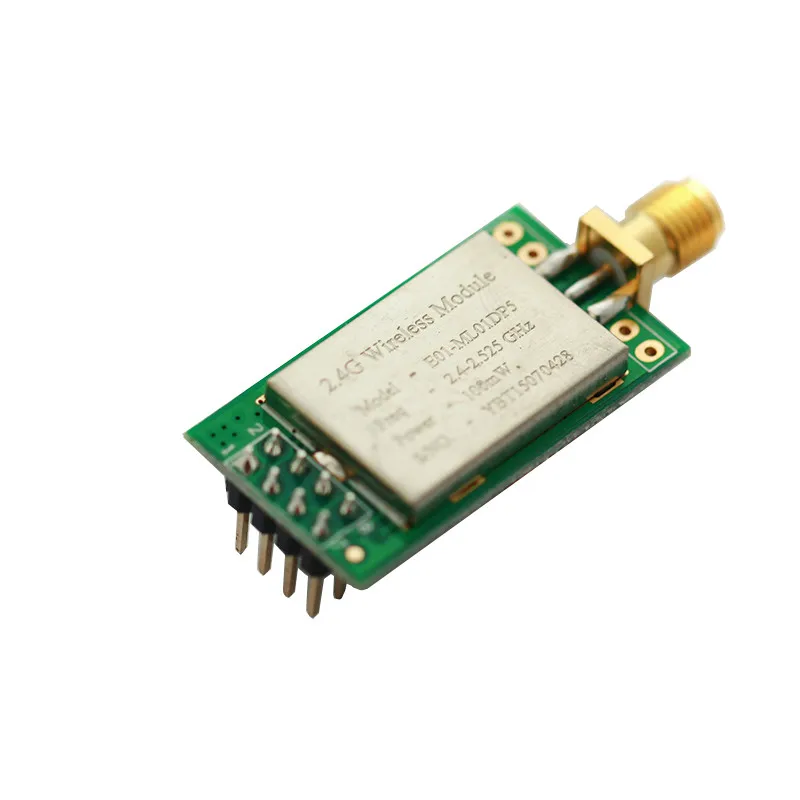

Long range E01-ML01DP5 Ebyte 20dBm 2100m SPI NRF24L01+PA+LNA 2.4GHz RF wireless transceiver module

[ Model ]: E01-ML01DP5

[ Interface ]: SPI

[ Power ]: 20dBm

[ Distance ]: 2100m

[ RF connector ]: SMA-K

[ Frequency ]: 2.4GHz(2400MHz-2525MHz)

[ Feature ]:E01-ML01DP5 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB. Those features make the transmitting distance 10 times longer than nRF24L01P itself. The anti-interference shielding cover on the module makes the anti-interference performance better.

Electrical parameter

No.	Parameter item	Parameter details & description
1	Size	18 * 33.4mm
2	Components	Imported from Japan, USA & Germany
3	Connector	2*4*2.54mm
4	Supply voltage	2.0 ---3.6V DC (Notes: the voltage higher than 3.6V is forbidden.)
5	Communication level	0.7VCC-5V(VCC refers to the supply voltage)
6	Operation Range	About 2100m(test condition:clear and open area& maximum power,antenna gain: 5dBi,height:> 2m,air date rate: 250Kbps)
7	Transmitting power	Maximum 20dBm(100mW)
8	Air data rate	Can be configured to 250k,1M,2Mbps
9	Sleep current	1.0uA(nRF24L01P sets as power-down)
10	Transmitting current	130mA@20dBm
11	Receiving current	20mA(CE=1)
12	Communication interface	SPI
13	Transmitting length	32 bytes (maximum) for one package, 3 level FIFO.
14	Receiving length	32 bytes (maximum) for one package, 3 level FIFO.
15	RSSI support	N/A(support simple data packet loss statistics)
16	Antenna type	SMA-K(External thread hole)
17	Operating temperature	-40 ~ +85
18	Operating humidity	10% ~ 90%
19	Storage temperature	-40 ~ +125

Pin Definition
