standerd version
Femtosecond TCXO Version

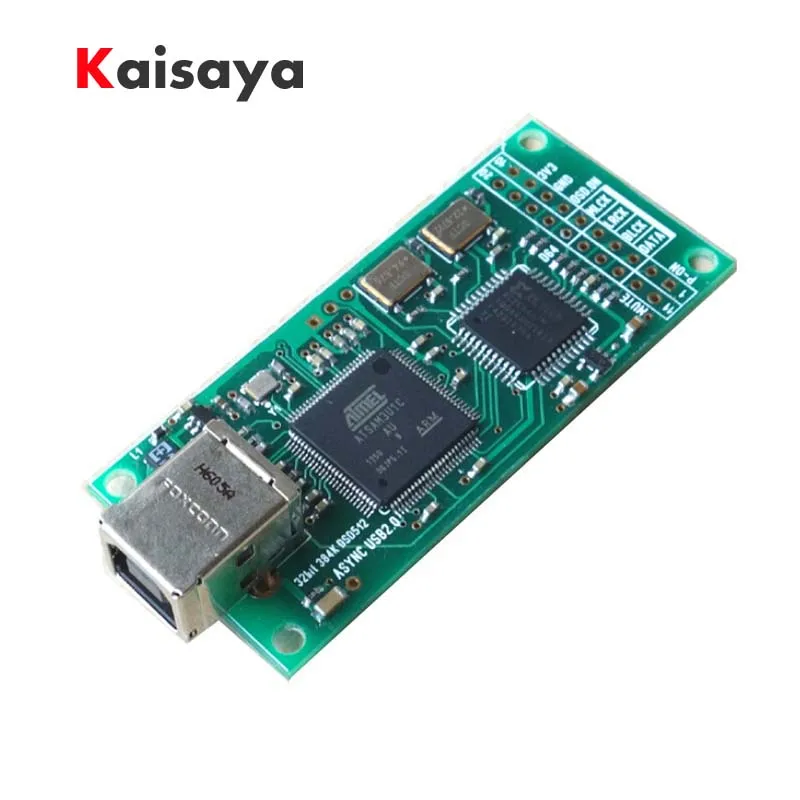

Italy Amanero usb iis digital interface with program effectiveness is to be sure, the price is expensive, use the same chip solution we made a relatively close to the people of the plate, the actual measure and original card no big difference. Because the board can choose a variety of crystal, so the board is relatively large 1:00, 90X50MM Information Reference: httppppp: //amanero.com
Driver Download: httppppp: //amanero.com/drivers.htm
This card only supports I2S output (DSD format can)
Supported Sample Rates
44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz
Output Format
I2S 32bit or DSD64, DSD128 - On Windows DSD256, DSD512 too
Oscillators
2 Low Phase Noise TCXO
Dimension
30x69mm
Note
DSD output enable line to signal an incoming DSD stream.The card supports output mode only.
NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel.
KS / Wasapi / WDM / ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee.
Upon Request
The user can provide a custom USB VID-PID, a custom Device Name and a custom CodeSign
Certificate for WDM drivers. For old applications the max sample rate can be configured to 192Khz
Technical indicators: DSD512, DXD 384k. Amanero support DSD Native (source) and DoP dual mode.
DSD Native with ASIO support to the highest audio specification, DoP basically no.
At the maximum rate, the maximum power consumption of this interface is only 0.6W!
The following is a well-known website HiFiDuino evaluation report:
Phase Jitter 0.04 ~ 2.41ps (10Hz ~ 1MHz), Total Phase Jitter (RMS) 2.42ps
Note: This result is in the range of 10Hz ~ 1Mhz, rather than pick a nice data at a certain frequency.
The following quote again AudioDesign information for your reference, to help understand the real level Amanero of:
Andrea Ciuffoli organization Rome Shaoyou to Amanero, WaveIO, M2Teck, QNKTC other variety of USB interface has been evaluation, which is the highest rating Amanero. WaveIO is a typical representative XMOS program, compared, Amanero win in the sound field open degree, detail, texture and other aspects of fluency.
Products Circuit diagram: httppppp: //amanero.com/USB_E.pdf Board set aside a large crystal position, drawn card width dimensions do 1:00, size 90MMX50MM
Usually only four wire I2S interface, plus a ground wire on it. Other ports can ignore
httppppp://amanero.com/CPLD_E.pdf
