Sdi To Uray Hd Live 4g Encoder Lte Streaming Rtsp Ip Emanuel Deloris Rating: 3.7 out of 5
You may fortunate because can get goods best price just at now! Promptly buy Flash Deal Sdi To Uray Hd Live 4g Encoder Lte Streaming Rtsp Ip goods now!
• Connection Schematic Diagram

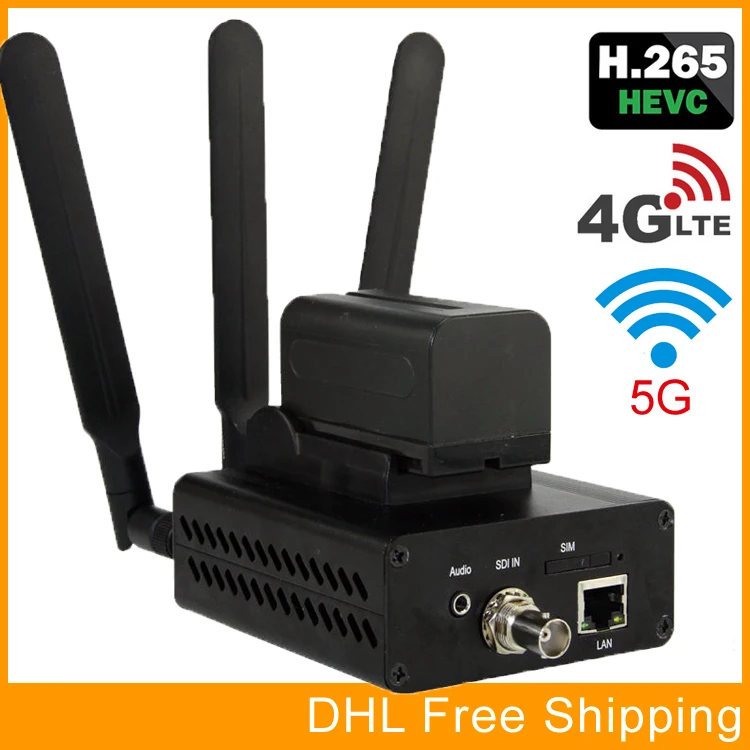

The HEVC H.265 /H.264 3G /4G SDI video encoder(Model No. USE265-1WB-4G) is our newest professional HD audio and video encoding device with powerful functionality. It is equipped with 1 channel SD /HD /3G SDI and 1 channels stereo audio(3.5mm) input supporting HEVC /H.265 or H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and four video streamings output simultaneously, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, FLV, HLS, ONVIF and streaming over 3G or 4G LTE(FDD /TDD) Or WIFI. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.
This 4G SDI encoder support SDI embedded audio or external audio optional from output video streamings.
Not only single channel, we also produce multichannel SDI video encoder which is packed by 1U /3U box. For 3U rack, max supports 16pcs encoder cards to be installed.
• Live Boardcast Online Platform
This 4G SDI encoder is easy to operate. Live streaming online to any web destination and turn your SDI-equipped camera /device into a video source. Whenever you do live streaming of your party, club, church’s ceremony or sharing your campus sports game online, it helps you bring your unique experiences of live broadcast to the web for your people.
It is compatible with most of live streaming platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server like wowza. It supports multi streamings, up max to 4 video streamings output at the same time. You can push streamings to multi-platform at the same time.
• Streaming Over 2.4G WiFi Or 5G WiFi
Live streaming over dual-band WiFi antenna, which support 2.4G WIFI or 5G WIFI connection.
• Long-Lasting Battery Life
You can use battery F550, F750, F970 of Sony. Normally the battery support you to do the live streaming broadcast with 8+ hour. When it is going to run out of juice, just connect a USB battery pack to keep it going. (note: The working time is based on the battery model)
Noted: the package dont include battery because of the shipping reason.You can buy Sony F550/ 750 /F970 battyer in your local place！！
• Streaming Over 3G Or 4G LTE, FDD /TDD LET, TD-SCDMA
•Embedded HiLinux System, stable and effective
•Support HEVC /H.265 and H.264 /AVC baseline /main /high profile encoding
•From 32Kbit/s to 32Mbit/s by CBR /VBR code rate controlling
•Support HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV, ONVIF streaming protocol
•Support image, logo, text parameter settings on the output video streamings
•Support English WEB operating interface and language customizable
•Support output video streams resolution setting(Up to 1920 * 1080P /60fps)
•Support up to 4 streamings output simultaneously
•Support hot shoe mount at camera
•Support 2.4G WiFi or 5G WiFi
•Support SONY F550, F750, F970 battery, normally 8+ hour outdoor working time
•Support multi-WIFI account(auto connection)
•Auto inspection WIFI AP
•Support 3G or 4G LTE
•Provide SDK And API For Secondary Development
•Support SDI embedded audio or external audio optional from output video streamings
•Support GOP frame rate settings
•Network interface full-duplex mode with 1000M speed
•Support HDCP and HD blue-ray
•A wide area network remote management (Web control panel)
•Support different protocol transmission for the 4 output streamings
•Support MP3 and AAC and AAC+ and AAC++ audio coding format selection
•A click to restore the default configuration
•Stable and effective, support 7 x 24h working time
•Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed
| Model No. | USE265-1WB-4G |
| Video | |
| Input Interface | 1 * SD /HD /3G SDI + 1 * Stereo Audio(3.5mm) |
| Support Resolution | Max Support 1920 x 1080P@60fps |
| Output Interface | 1 * Ethernet Port (RJ45) Or WIFI Or 3G /4G |
| Video Encoding | HEVC /H.265 Or H.264 /AVC |
| Code Rate Control | From 32Kbps to 32Mbps |
| Code Rate | CBR /VBR |
| GOP Structure | IBBP |
| Video Pre-processing | De-interlacing, Noise Reducing & Sharpening |
| Audio | |
| Audio Encoding | AAC, AAC+, AAC++, MP3 |
| Sampling Rate | Auto |
| Bit-rate Option | 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K,384K |
| Sampling Accuracy | 24 Bit |
| Audio Data-rate | 64Kb /S to 384Kb /S |
| Network | |
| RJ45 | 1000M Interface |
| Program Streaming | HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV, ONVIF |
| Control Panel | WEB Panel (Language Customizable) |
| Firmware Update | Enable by Uploading Files To Dashboard |
| General | |
Dimension (W* L* H) | 120 * 90 * 60 /mm |
| Gross Weight | 0.4KG |
| Temperature | 0 to 45(For working), -20 to 80(For storing) |
| Input Voltage | 9V /DC |
| Power Consumption | 5W |
Substream1, Substream2, Substream3 Setting is the same as mainstream setting.
•IPTV
•Streaming Media Server (Wowza, Xtream Codes, Flash Media Server, etc.,)
•Online Live Broadcast(Youtube, Facebook, Ustream, etc.,)
•NVR (Net Video Recorder)
•Teaching / Campus Broadcast
•Hotel TV System
•Video Conference
•Digital Signage
•Recording System (Replace Video Capture Card)
