Support Sdi Wowza Streaming To Limited Encoder H.265 Server Like Hevc/h.264 Live Rtmp Herbert Rhea Rating: 4.7 out of 5
These days this goods is actually inexpensive for nearly every person and also its an extremely good buy for the money.

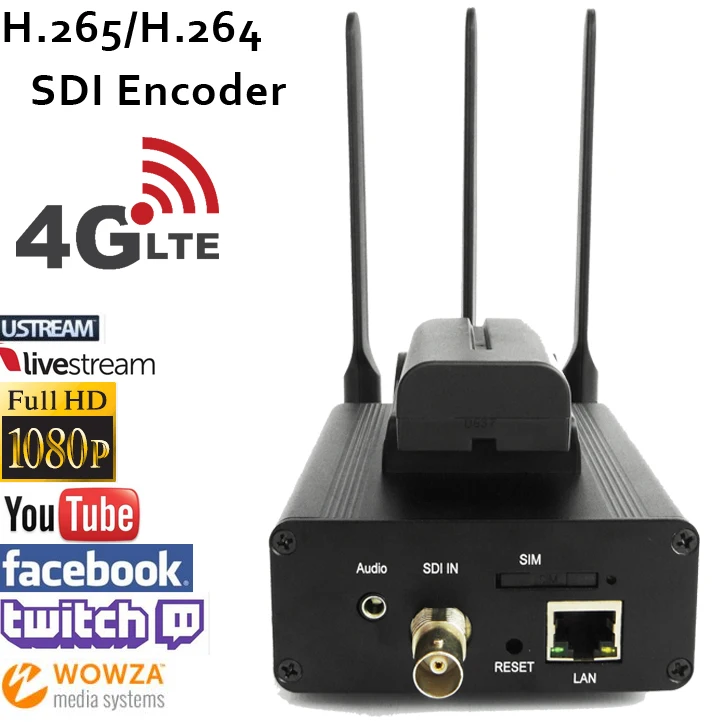

DHL/EMS/FedEx free shiping for H.265/H.264 4G LTE SDI Video Encoder for live Broadcast encoder wireless 4G H265/H.264 iptv encoder
U8Vision UB8601H-SDI-EWBG Live video streaming Encoder has never been easier. Go live online to any Web destination or turn your HDMI-equipped camera into a wireless video source. Whether you’re streaming your party,Club,church’s ceremony or sharing your campus sports game online, U8Vision UB8501H-SDI-EWBG helps you bring your unique experiences live to the Web for your people.Live Boardcast On Any Streaming Service
U8Vision UB8601H-SDI-EWBG ,it is compatible with most of streaming platforms, you can choose any of the popular streaming platforms togo live at anytime you like ,such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using Wowza Streaming Server U8Vision UB8601H-SDI-EWBG can support multi-stream,up max to 4 stream at same time.you can push multi-platform in the meantime.
Wireless Source for LiveAdd watermark, overlay text, or curate a professional live production with U8Vision UB8601H-SDI-EWBG encoder. By using U8Vision UB8601H-SDI-EWBG encoder you can import live video from your GoPro™, camcorder,DSLR,or the screen of computer ,etc.
Long-Lasting Battery LifeU8Vision UB8601H-SDI-EWBG,With2+ to 8+ hours external battery(Sony F550/750/950/970 Battery) ,you will never miss a moment of the action. When it is going to run out of juice, just connect a USB battery pack to keep it going.(note:it is up to your batter model that is working time,)
***Because ship reason, the package dont including battery itself inside
Streaming Over HG WiFi Stream live over dual band WiFi ,U8Vision UB8601H-SDI-EWBGI encoder support 300M,HG wifi connection.Streaming Over 4G LTE,FDD/TDD LET,TD-SCDMAFDD LTE: B1,B3,B8
TDD LTE: B39,B40,B41(38)
Very inportant notice: This encoder only works with above 4G band,please check with your 4G SIM card provider 1st before you order it.or it will not works. If you need other band, Please contact us for more details.Feature*More Powerful chip ,up max to 4 stream(2x1080P+2x720P)*Mini Size Box, Portable Size*Low Latency Time,less than 300ms*Big Bitrate,up max 32M*High Frame Rate Output, up max to 60p*TS Access Control*Auto Inspection WIFI AP*Support Multi-WIFI account(auto connection)*Support DHCP with cable or wifi*Support m3u8 ,*Perfect Support 44100/48000 audio*Support hot shoe mount at Camera*Support BatteryOverview H.265/H.264 HD encoder is our newest professional HD audio & video encoding device with powerful functionality. It support H.265/H.264 encoding,dual-Streaming data.It is equipped with 1 SDI channels input supporting H.265/H.264 High Profile code format & main Profile code format..its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end. satellite and terrestrial digital TV etc.it can support VLC decode.Market Coverage 1. IPTV 2. Digital Signage 3. Video Conference 4. Replace HD Video Capture Card 5. Hotel TV system 6. Live Broadcast 7. Teaching/Campus Broadcast 8. Recording System 9. NVR(Net Video Recorder)Specification
Video Input | 1xSD/HD/3G SDI |
Resolution | 1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i |
Encoding | H.265/H.264 Baseline/Main/High Profile Level 4.2 |
Output FPS | 1080P60(only input 1080P60) |
Bit rate | 0.16Mbps~32Mbps |
Rate Control | CBR/VBR |
GOP Structure | IBBP |
Advanced Pretreatment | De-interlacing, Image Enhancement,Noise Reduction, Sharpening |
Latency Time | 200ms |
Encoding | AAC/AAC+/MP3 |
Smapling Rate | 44100/48000 Hz |
Bit-rate | 32K/48K/64K/96K/128K/160K/192K/384K |
Sampling precision | 24bit |
Ethernet | 1000 Base-T Ethernet Interface 2.4G Wifi(WPA/WPA2) 300M4G TDD/FDD LTE |
Protocol | HTTP RTSP RTMP FLV HLS(m3u8) UDP unicast/multicast |
Control Interface | WEB Manager |
Dimension9WxLxH) | 77x104x26mm |
Net Weight | 0.5kg |
Temperature | 0-45(work),-20-80(storage) |
Power | 12V/9V DC 1A |
Consumption | 5W |
Noted: the package dont include battery because shipment reason.you can buy compatible Sony F550/750 battyer in your local.
Live Boardcast On Any Streaming Service like WOWZA,FMS,Youtube/Facebook live,Ustream,Livestream...
Below is the interface pictures:
